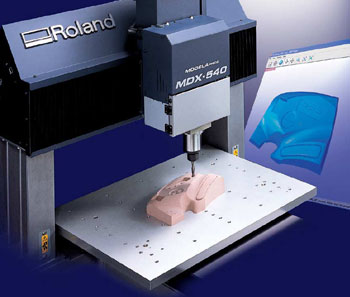

Roland MDX-540 - ModelaPro II

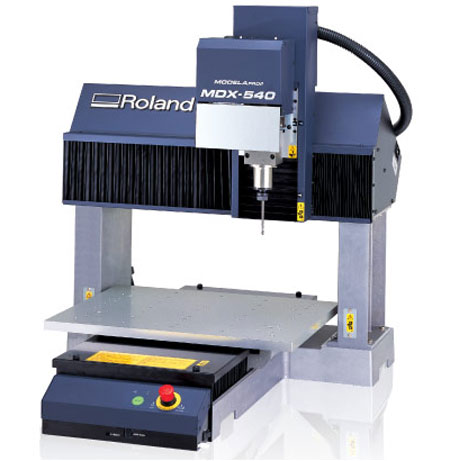

Click Here To View Larger Version


Roland MDX-540 - ModelaProII

Working area

500 x 400 mm

Z stroke

155 mm



Spindle motor

DC brushless motor 400W

Spindle speed

400 - 12.000 rpm



Dimensions

745 x 955 x 858mm

Weight

102 kg

MDX540 Engraver

Roland MDX-540; 540A; 540S; 540SA (528KB)
Roland MDX-540 Users Manual (2.79MB)


Roland ZAT-540 Users Manual (2.25MB)
Roland ZCL-540 Users Manual (1.78MB)

* * *

MDX-540 Milling Machine – Factory discription
List Price:
MDX-540: $19,995 (US Dollars)
MDX-540A: $29,995 (US Dollars)
MDX-540S: $24,995 (US Dollars)
MDX-540SA: $34,995 (US Dollars)

-SRP® Technology
-Fast, accurate prototyping
-Wide variety of materials
-Smooth surface finish

Anyway you look at it – the MDX-540 SRP® System is a winner. It’s one of the fastest and most accurate RP systems on the market. And its price tag is less than half most additive systems. The desktop device comes complete with powerful CAM software, making it easy to quickly produce everything from functional and snap-fit prototypes to light metal molds and custom jewelry.

SUMMARY
- Creates the most accurate prototypes for complex snap-fits
- Creates prototypes for functional testing and proves part manufacturability
- Handles a wide variety of materials and generates a smooth surface finish
- 400W DC Brushless motor with increased torque for fast, accurate prototypes
- Bundled, user-friendly CAM Software
- Handheld controller and virtual control panel make set up fast and easy
- Specialty MDX-540S and MDX-540SA models available for enhanced precision and repeat accuracy
- Optional 4th rotary axis and automatic tool changer
- Maximum 19.68" x 15.74" x 6.10" XYZ-Axis Travel

* * *

All data on e-engraving.com is listed without any favoring. We supply links
to manufacturers websites where all information can be confirmed.
We are not responsible in case any information is invalid or missing.
