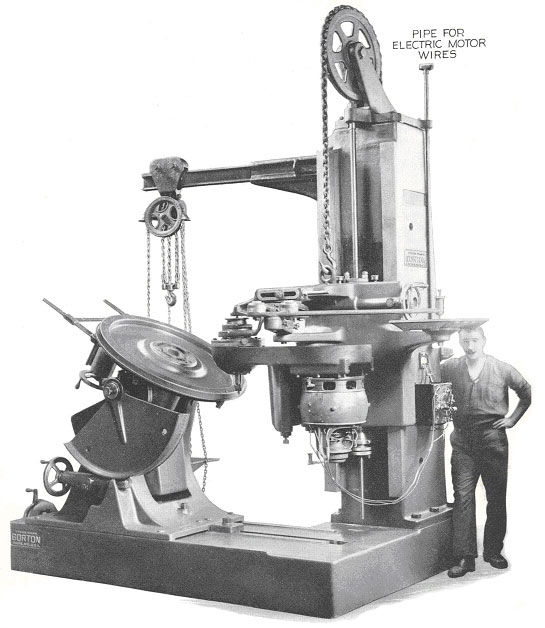

Gorton 1-M Pantograph


Click Here To View Larger Version of Photograph

Gorton 1-M Pantograph

Working area

65" Ring diameter

Copy table

28" x 12"

Variable ratio

1:3



Spindle motor

3 HP

Spindle speed

4.000 - 5000 rpm



Dimensions

9' x 5' x 12'

Weight

18.000 lbs.

1M Engraver
